Sentry Sentry Mini

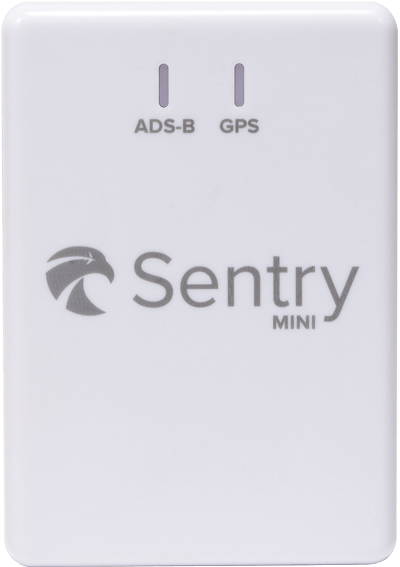

Sentry Mini

At only $299, the Sentry Mini Portable ADS-B and GPS Receiver gives you essential inflight weather, traffic, and position data on ForeFlight at an attractive price.

Buy Now on Sporty's

Sometimes it’s as Simple as Knowing Where to Look

Get help in “seeing and avoiding” with dynamic traffic display in ForeFlight. Receive air-to-air traffic information from ADS-B Out equipped aircraft and rebroadcast traffic information from FAA ground towers (ADS-R / TIS-B).

Note that if your aircraft is not ADS-B Out equipped, your view of traffic may be limited.

Traffic Traffic
Inflight Traffic Alerts

ForeFlight doesn’t just show you where the traffic is, it tells you. Visual and audio alerts provide the distance, direction, and relative altitude of ADS-B traffic targets.


Audio alerts
TRAFFIC
Audio Alerts
Visual Alerts

Traffic 2'o-clock, 2nm, 600ft Below

Synthetic Vision on ForeFlight

The Standard in Reliable GPS Technology

Pilotage meets the 21st century with Sentry Mini’s highly-accurate WAAS GPS. See your aircraft position on ForeFlight’s moving map display and innovative Plates on Map feature. Sentry Mini supports four GNSS systems (WAAS GPS, Galileo, GLONASS, and BeiDu), and can track three constellations concurrently for redundant location tracking. View a variety of inflight data, including ground speed, altitude, ETE, distance to destination, and more.

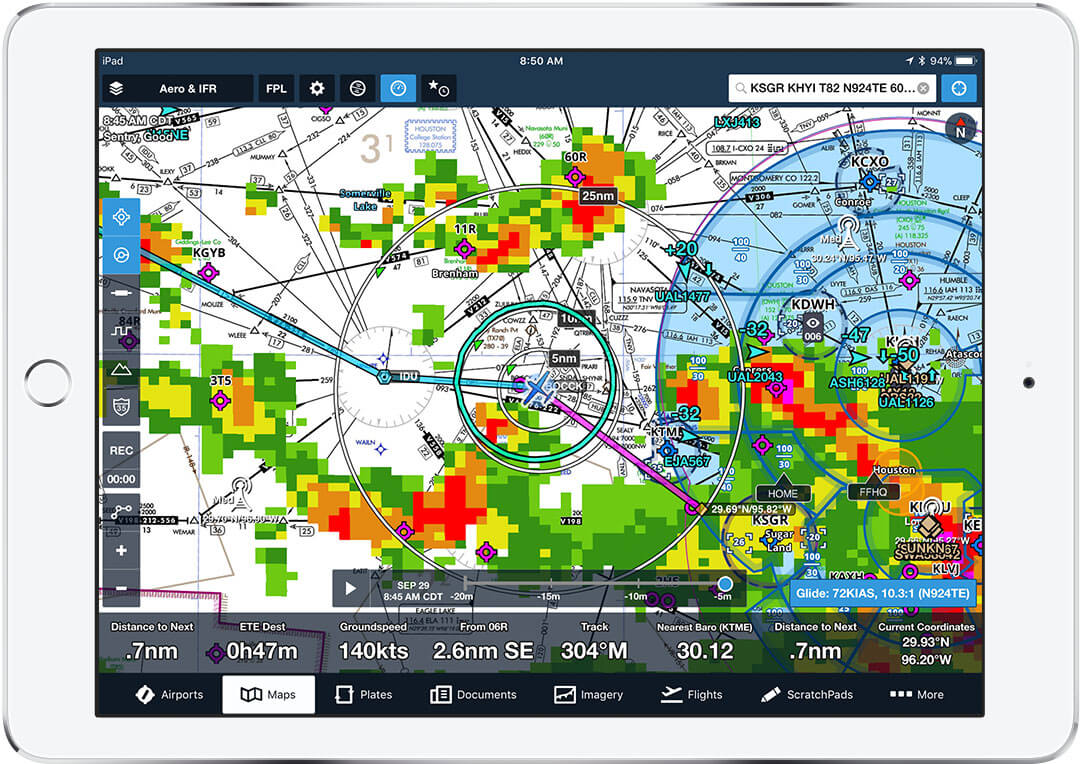

Don’t Settle for a Slice - Get the Full Weather Picture

Knowing what’s around you is just as important as knowing what’s in front of you.

With Sentry Mini you can access subscription-free FIS-B weather & data. Display animated regional and CONUS NEXRAD, METARs, TAFs, AIR/SIGMETs, PIREPs, textual winds and temps aloft, TFRs, NOTAMs, Lightning, Cloud Tops, Icing and SUA information on ForeFlight Mobile.

Integrated Weather Replay™

With onboard memory supporting up to 30 minutes of FIS-B data, Sentry Mini saves animated radar and other weather so data is available as soon as you connect.

Better situational awareness in ultra compact form

Dual ADS-B antennas, optimized for 978 MHz and 1090 MHz frequencies, and a WAAS GPS receiver are integrated into the casing to create Sentry Mini's compact design - measuring just 3.3 x 2.3 x 0.6 inches and weighing in at only 44 grams.

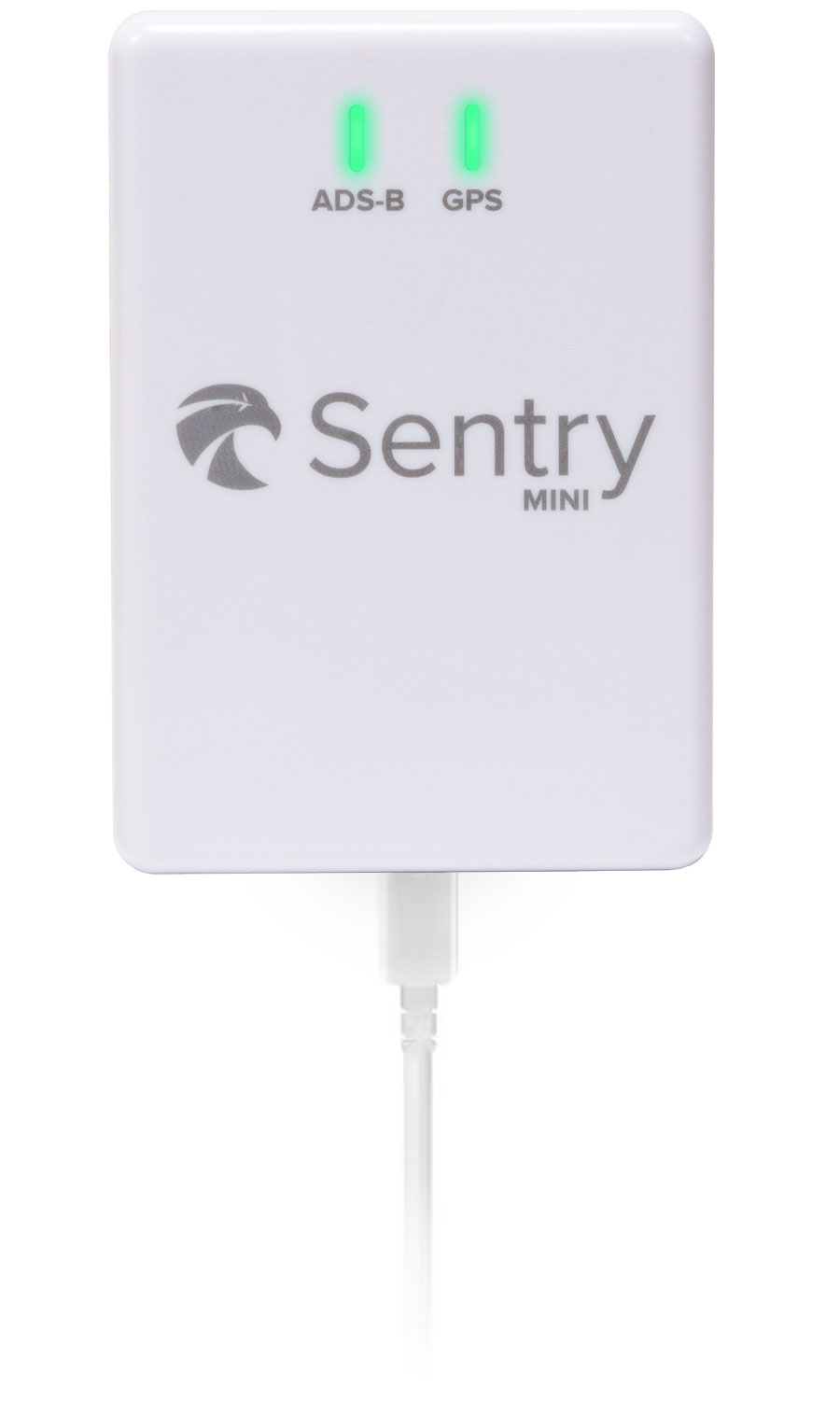

Sentry Mini Plugged In
Quick Setup.
Just add power and fly.

No hardware to assemble, no additional software to download, nothing to configure. Plug into any portable 5V USB battery or existing USB power source in your aircraft. Sentry Mini does not have an internal battery. Simply position on any window surface using Sentry Mini's included RAM mount, plug into an external power source, and go fly.

Buy Now on Sporty's

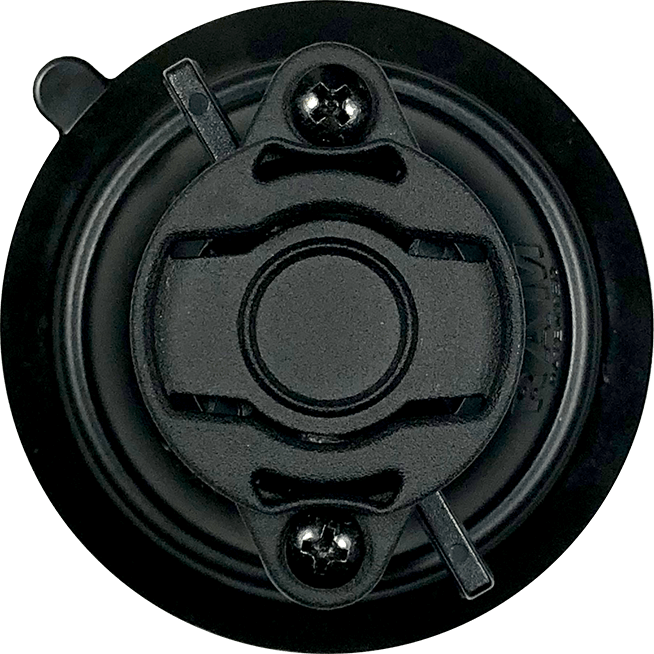

Fast & Reliable Mounting with Quick Release

Sentry Mini’s quick release mechanism means you can attach and remove it in under a second. The popular RAM® suction cup mount ensures a long-lasting seal and high heat tolerance so you can leave it in the plane between flights.

Inflight Connectivity for Pilots and Passengers

Sentry Mini’s integrated Wi-Fi network supports up to 5 devices.

Use ForeFlight’s Cockpit Sharing feature to quickly and easily share routes between all devices on Sentry Mini’s network - perfect for your co-pilot and passengers to follow along as extra eyes on traffic and weather.

Easy Firmware Updates Through ForeFlight

Updating Sentry’s firmware is a non-issue thanks to fast over-the-air updates through ForeFlight. When an update is available, ForeFlight provides one-tap installation that finishes in seconds.

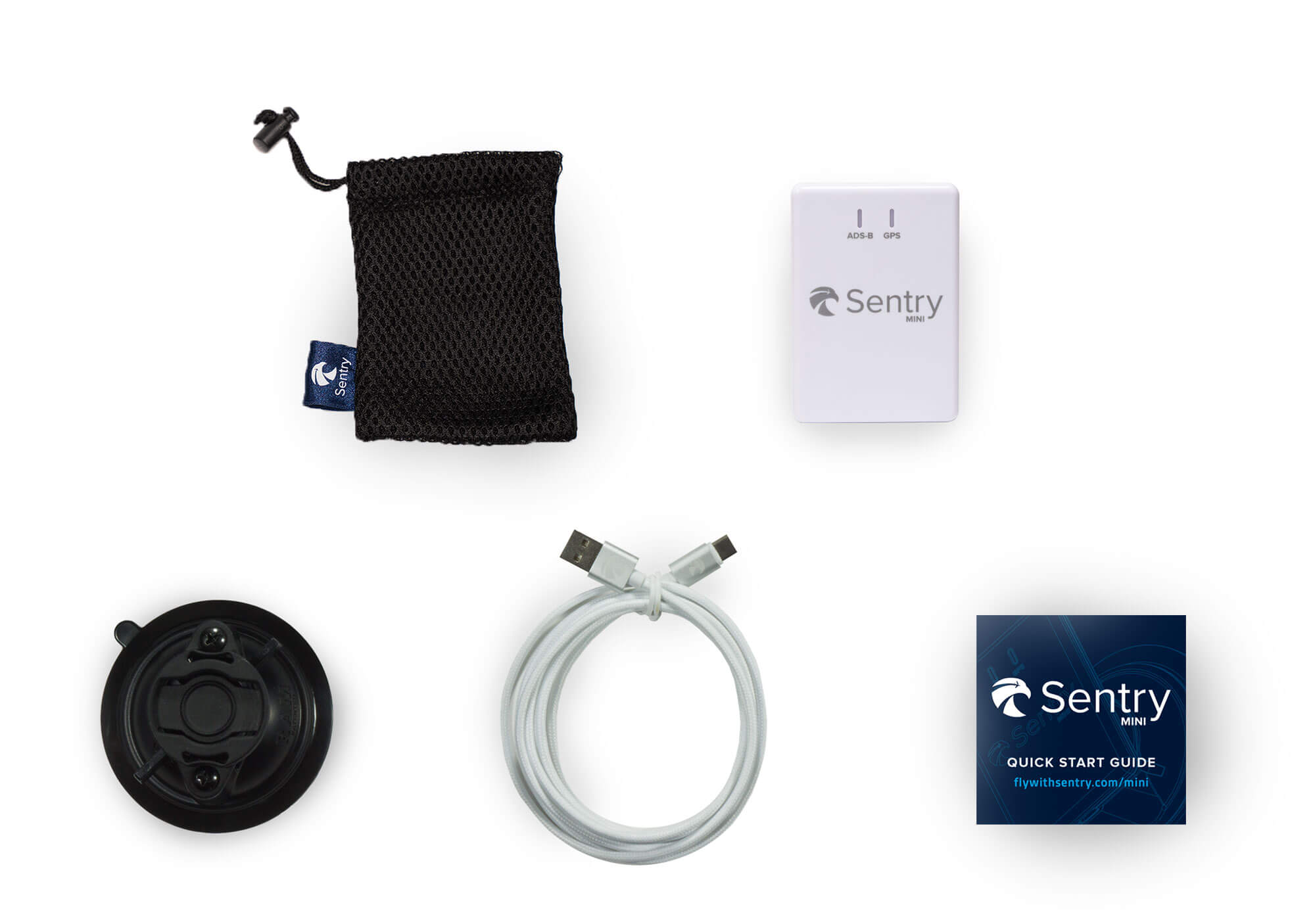

What's Included

Sentry Mini comes with a convenient carrying pouch with room for Sentry Mini and the included USB-C power cable, plus the high-quality RAM suction-cup mount with quick release.

Here’s what you’ll find inside:

Designed in Texas, California, and Montana.

Scout & Sentry Comparison
Scout Sentry Mini Sentry
Price $199 $299 $499
FIS-B
Dual-band Traffic
WAAS GPS with Multi-Constellation Support
Backup Attitude (AHRS)
Internal Battery
(12+ hours)
Firmware Updates Through ForeFlight
Weather Replay
Barometer (for Pressure Altitude)
Flight Data Recorder Coming in a Future App Release
CO Monitor
Device Management
Connector Micro-USB USB Type C USB Type C
Connection Wi-Fi Wi-Fi Wi-Fi
In The Box Suction cup mounts, power cable, rugged carrying case Suction cup mount with quick release, USB-C power cable (no wall plug), convenient carrying pouch Suction cup mount with quick release, USB-C charging cable (no wall plug), rugged carrying case
